Five Stacked N-Series Rectangular Instruments

Designed for t​oday, prepared for tomorrow.​​​​​​
​

Combining sophisticated technology​ with maintenance-friendly design.

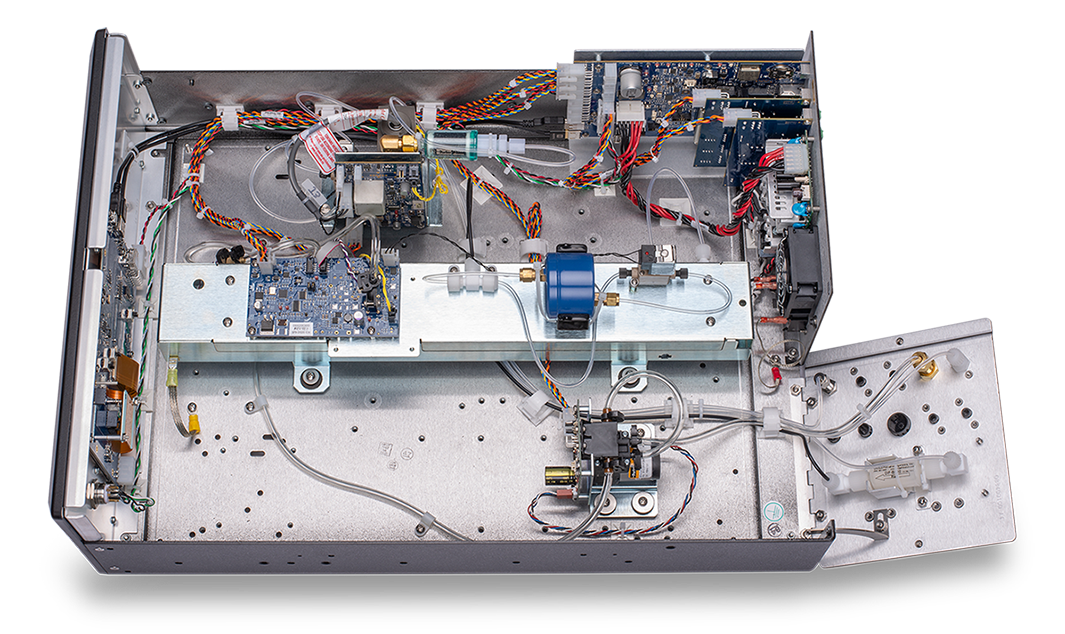

​Inside Chassis and cell of an air pollution instrument
​

Traditional Gas Instruments

 ​

N S​​eries Gas Instrument​s

N Series Advantages​
Legacy, master-slave based communications with motherboard host controller required​ ✓ ​Multiple smart, microprocessor-controlled modules with robust Controller Area Network (CAN) Bus communications ✓ Easy field replacement​ with pre-tested and calibrated modules
Power delivered separately to individual components ✓ Single, common cable set from the mainboard provides both power and data along th​e CAN Bus ✓ Simplifies cabling and improves reliability with fewer connections, less cabling
Multiple AC and DC power supplies required for internal components​ ✓ One single, common universal power supply with all internal DC-powered components ✓ Simplifies internal layout and consumes less power
​Relay-based, hard power switch ✓ Soft-power front panel switch ✓ Improves reliability by allowing safe software shutdown before powering off
Antiquated displays and user interfaces ✓ ​NumaView™ Remote Software ✓ ​Improves efficiency with mature, familiar, and intuitive user interface
Fixed chassis ✓ Split fold-down rear panel ✓ Decreases field maintenance time with easy access to internal pneumati​c connections
1-year standard warranty ✓ All T Series and N Series instruments include a 2-year manufacturer's warranty and free lifetime technical support ​by phone and email ✓ Increases value of your investment​​​​

Simple operation and integ​ration
guaranteed​.

​ Front panel of a T200 instrument Rear panel of a T200 instrument
Teledyne Logo with divider​ ​

Meet the new N Series gas instruments​

​
Gas
 ​Model
 Ranges (Min / Max)
SO2 (Sulfur Dioxide)​​​​
 N1​00​
 0-50 ppb / 0-20,000 ppb​​
N100H
 0-10 ppm / 0-5,000 ppm​


​NO, NO2, NOX (Nitrogen Oxide, Nitrogen Dioxide​)​
 N200​
 0-50 ppb / 0​-20,000 ppb​
​N200M
 ​​0-1 ppm / 0-200 ppm
​N200H
 0-5 ppm / 0-5,000 ppm

CO (Carbon Monoxide)​​
 ​N300
 0-1 ppm / 0-1,000 ppm​
​N300M
 0-5 ppm / 0-5,000 ppm​​

​​CO2 (Carbon Dioxide)​​​
 ​N360
 0-2 ppm / 0-2,000 ppm​​
N360M​
 ​0-4 pp​m / 0-4,000 ppm​​
​ ​CH4 (Methane), THC (Total Hydrocarbons)
 ​N901​​(TAPI)
 0-5 ppm / 0-1,000 ppm (Methane)​​​

​Integrated paramagnetic O2 and/or NDIR CO2 sensors available for some models. Refer to product specification sheets for details.​​​​​​


• ​​Customizable, capacitive touch screen display with scrolling capability
• Programmable quick-view meter variables and test functions
• Real time gra​​phical representation of any dynamic parameter
• Customizable alerts and datalogging events

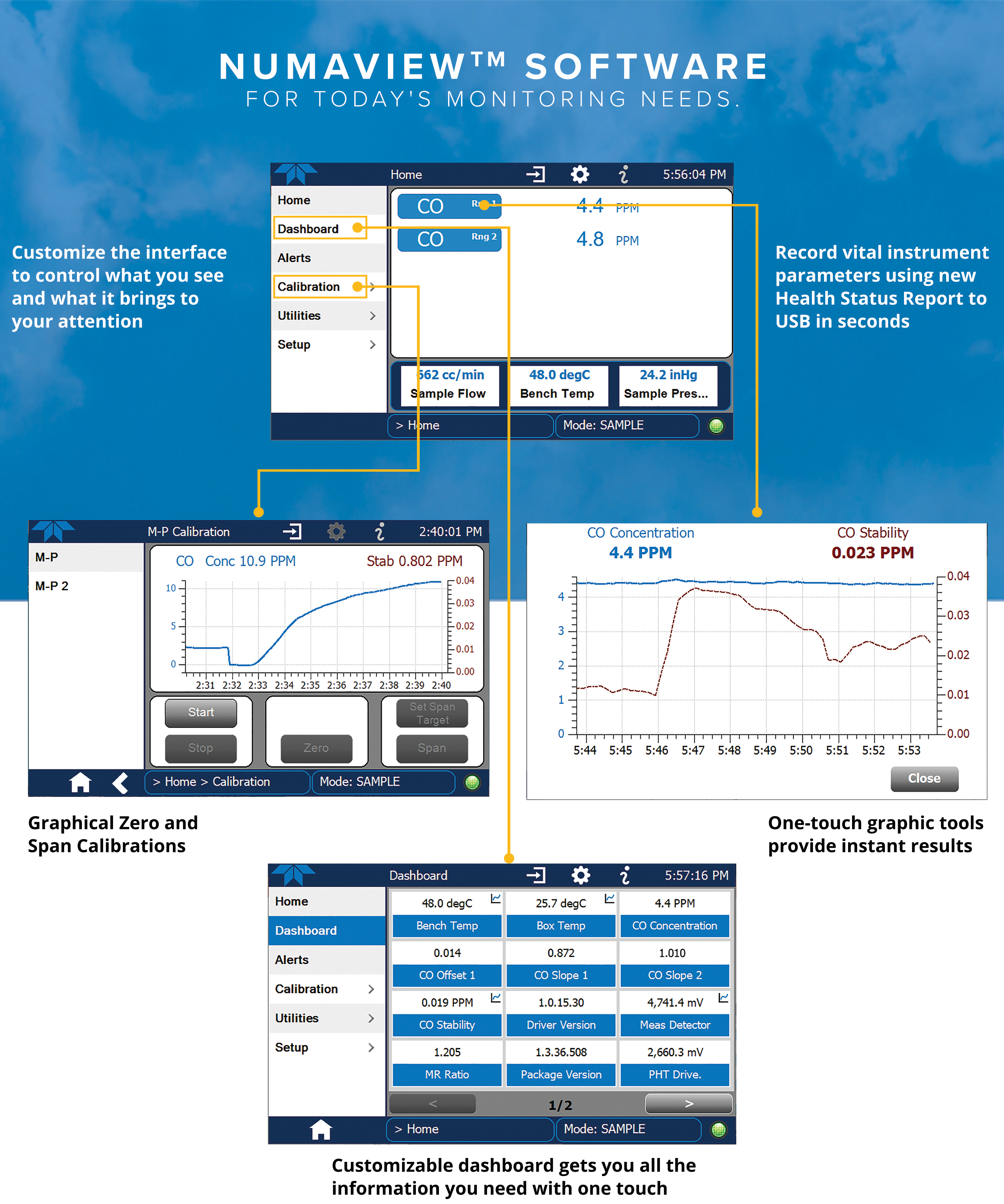

• Remote access and control using NumaView™ Remote Software*​
• Ability to view graphs of historical logged data on the screen
• Simple and intuitive calibration functions
• USB utility for both uploading and downloading dat​​​a
• On-demand instrument health status report​
• Multiple language support​
